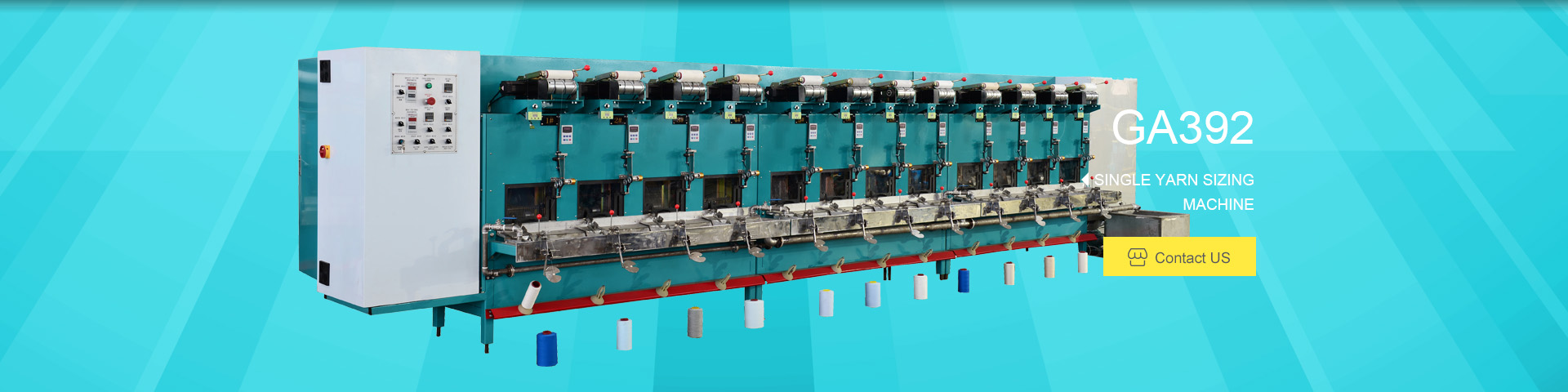

GA392 SINGLE YARN SIZING MACHINE
Machine occupied area£º3,100¡Á850¡Á1,750£¨L¡ÁW¡ÁH£©mm for 4 spindles.
These 4 spindles are taken as reference,adding 1,900 mm for each additional
4 spindles,no change for width and height.
Weight£º1,000KG,1,100KG(6 spindles)
-
Automatic tension control
Control mode£ºsingle spindle control,the freq.con.or stepless controller is used for cabbage rotational motor in drying room.The yarn guide cylinder is traced by the servo.
-
-
-
Motor power
0.18kw per spindle(cabbage motor),0.75kw per spindle (yarn guide cyl.motor),1.8kw per spindle (drying room),about 1.1kw per spindle (heat cyclic motor),sizing pump motor 0.75kw,size trough heating 3kw.
-
TECHNICAL PARAMETER PERFORMANCE INDEX
Spindle number£º2,4,8,12
Speed£º20¡«300 meters per min.(Depending on the yarn thread sorts)
Yarn range and applicable sort:5¡«500tex,cotton,wool,silk,hemp and chemical fabric,etc.
Length counted mode£ºelectronic,speed displayed in LCD
-
