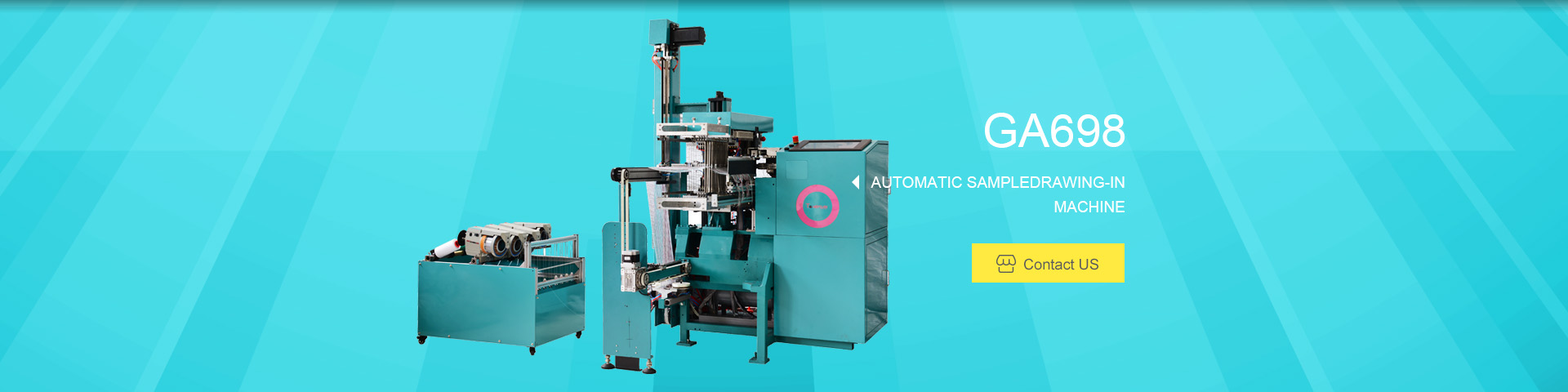

GA698 automatic sample drawing-in machine
Drawing-in speed£º20-100(end/min)
Weft colors£º8(colors)
Warp length£º1.4(m)
Heald heddle requirements:opening(type"J"type"C"),Length£º330mm
Nos.of heald£ºMax 20 nos
-
TECHNICAL PARAMETER
Fabric width£ºsuitable for sample loom 12,16,20,24,28,32 inch.
Reed density£º20-350(reed/cm)
Control system£ºSiemens PLC and touch screen control system
Dimensions£º700x2200x1300(length'width'height)(mm)
The power of the equipment:2KW vottage£º220V 50HZ
Weight£º800KG
-
